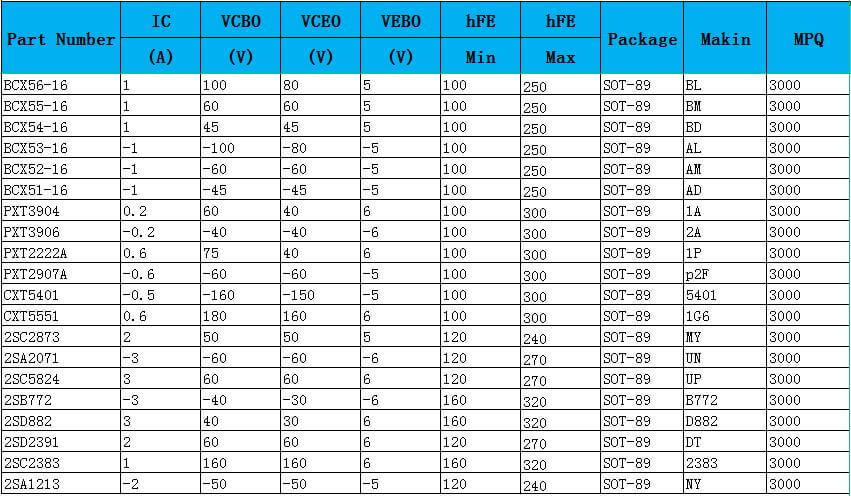

Parameters:



Features:

1. Moderate Power Handling: The SOT-89 package is capable of handling higher power levels than smaller surface-mount packages like SOT-23. It typically supports power dissipation up to around 1 to 2 watts, depending on the specific device and cooling conditions.

2. Good Thermal Performance: The package has an exposed metal tab that allows for effective heat dissipation. This makes it suitable for applications where the transistor needs to handle moderate current levels without overheating.

3. Compact Size: While larger than the SOT-23 package, the SOT-89 is still compact, making it a good choice for applications where space is limited but some power dissipation is required. Its size is approximately 4.5mm x 2.5mm x 1.5mm.

4. Three-Terminal Configuration: The SOT-89 package typically has three leads—collector, base, and emitter for BJTs (or drain, gate, and source for MOSFETs)—making it compatible with standard transistor circuit configurations.

5. Surface-Mount Technology (SMT): As an SMT component, the SOT-89 is designed for automated assembly on PCBs. It supports high-density board layouts while providing adequate power handling and thermal dissipation.

6. Wide Application Range: SOT-89 transistors are versatile and can be used in various applications, including power management, audio amplification, RF circuits, switching, and automotive electronics.

7. High Current Capability: The SOT-89 package can handle higher currents than smaller packages, typically up to a few amps, making it suitable for power switching and amplification tasks.

8. Stable Performance: The package’s design ensures stable electrical and thermal performance, even under conditions of moderate power dissipation, which is important for reliable operation in demanding applications.

9. Cost-Effective: Despite offering better power and thermal performance, SOT-89 transistors remain cost-effective, making them suitable for high-volume production.

10. Robust Design: The sturdy construction of the SOT-89 package provides enhanced durability, making it suitable for use in harsh environments, such as automotive and industrial applications.

Shipping:

Standard Lead Time: 0-2 Weeks

Shipping Time: 3-40 working days (As your choice & your country)

Item location: No.3, Chayuan Road 3rd Street, Ailingkan, Dalingshan, Dongguan, Guangdong, China



Service:

Free Samples

Warranty: 2 Year

24-Hour Online Service: Solve your product problems and any other issues
