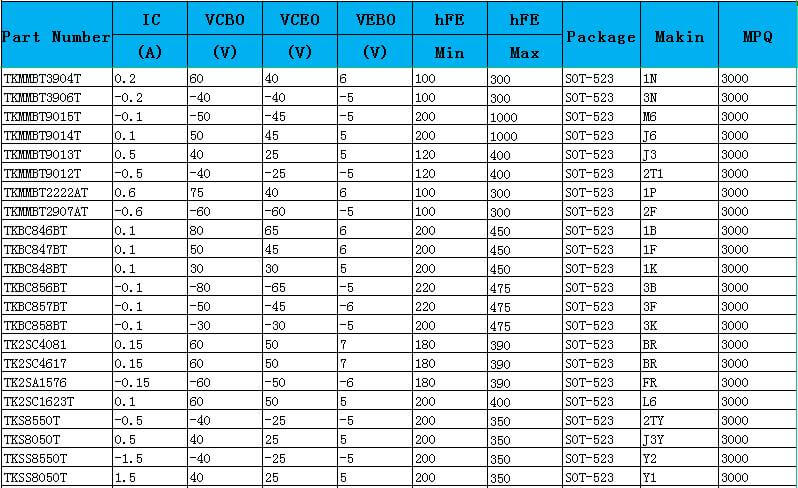

Parameters:


Features:

Transistors in the SOT-523 package are among the smallest surface-mount devices available, making them suitable for highly compact electronic designs.

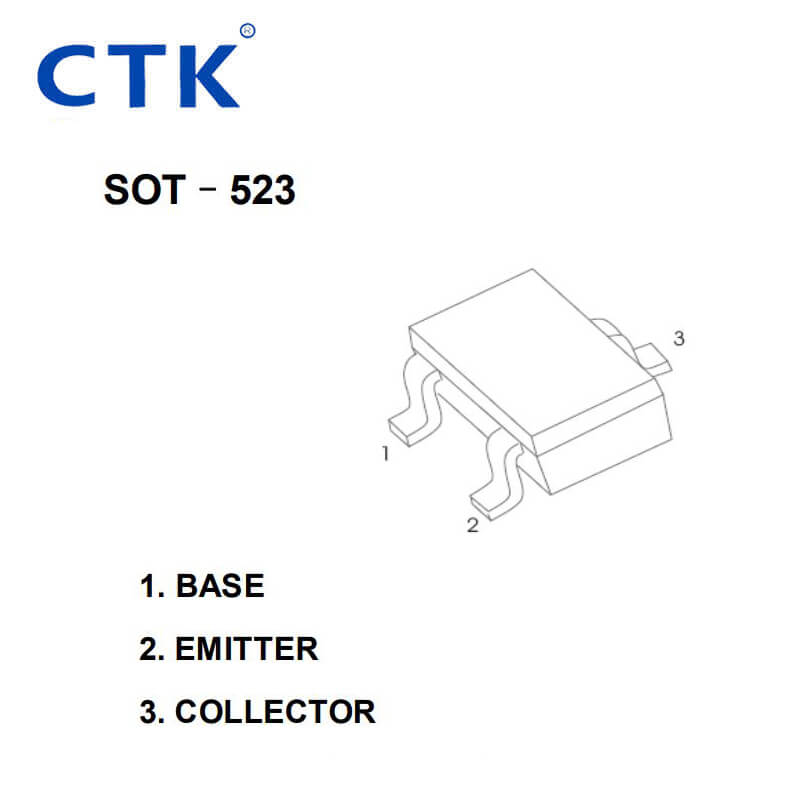

1. Ultra-Small Size: The SOT-523 package is extremely compact, typically measuring around 1.6mm x 1.2mm with a height of about 0.8mm. This small footprint is ideal for miniaturized electronic devices where space is at a premium.

2. Low Power and Current Handling: Due to its very small size, the SOT-523 package is designed for low-power applications. It can handle only small currents and voltages, making it suitable for tasks like signal switching and amplification in low-power circuits.

3. Three-Terminal Configuration: Like other small SMD packages, SOT-523 transistors typically have three terminals, suitable for simple switching and amplification applications involving BJTs or small MOSFETs.

4. Low Parasitic Elements: The compact design results in minimal parasitic inductance and capacitance, which is beneficial for high-frequency applications where signal integrity is critical.

5. Surface-Mount Design: The SOT-523 package is a surface-mount device (SMD) designed for automated assembly on high-density PCBs. Its small size allows for tighter component placement, supporting advanced miniaturization in electronic products.

6. Limited Thermal Performance: The SOT-523 package has very limited thermal dissipation capability due to its small size, making it unsuitable for high-power or high-current applications.

7. High Integration Capability: The tiny size of SOT-523 transistors allows them to be used in high-density circuit designs, such as in smartphones, tablets, and wearable devices, where space is extremely limited.

8. Cost-Effective for Mass Production: Despite its small size, the SOT-523 package is cost-effective, making it ideal for use in consumer electronics that require large-scale production.

9. Application Specific: SOT-523 transistors are often used in applications that require minimal power consumption and space, such as RF circuits, portable devices, sensors, and other low-power electronics.
